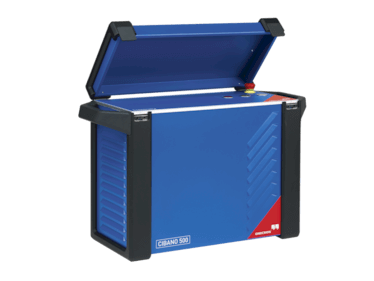

Omicron CIBANO 500

Advanced Diagnostic Capabilities:

The CIBANO 500 allows full-spectrum circuit breaker testing using a single connection setup. It performs precise timing, travel and motion analysis, dynamic and static contact resistance measurements (DCRM and μΩ testing), coil current analysis, and motor supply testing. Its adjustable power supply enables accurate under-voltage condition testing, providing deep insight into breaker performance under realistic operating scenarios. All test results, including DCRM curves and values, are automatically consolidated into one comprehensive test report.

Easy-to-Use Interface:

Designed with usability in mind, the CIBANO 500 features an intuitive operating concept that simplifies complex testing procedures. Guided workflows and automated test sequences reduce setup time and minimize operator error, allowing technicians of varying experience levels to perform accurate and repeatable tests quickly and confidently.

High Accuracy and Reliability:

Engineered to OMICRON’s high precision standards, the CIBANO 500 delivers reliable and accurate measurements across all test parameters. Its high-resolution micro-ohm (μΩ) and dynamic contact resistance measurement capability ensures precise validation of main contact condition, helping to detect contact wear, erosion, misalignment, and increased resistance during breaker operation.

Versatile Testing Applications:

The CIBANO 500 is suitable for testing a wide range of circuit breaker types and designs, offering universal compatibility for medium- and high-voltage breakers. It supports factory acceptance testing, commissioning, routine maintenance, troubleshooting, and condition-based monitoring programs.

Portable and Field-Ready:

Despite its powerful capabilities, the CIBANO 500 features a lightweight and compact design. The instrument weighs approximately 20 kg and is easy to transport and deploy in field environments. Its robust construction ensures dependable performance under demanding site conditions.

Comprehensive Support:

When you rent the OMICRON CIBANO 500 from us, you receive full technical support from experienced professionals. From equipment setup and test configuration to data interpretation and troubleshooting, we ensure your testing operations are smooth, efficient, and accurate.

Preferred by Industry Experts:

Trusted by utilities, service providers, and industrial operators worldwide, the OMICRON CIBANO 500 is recognized for its efficiency, accuracy, and innovative all-in-one testing approach. Its ability to perform Dynamic Contact Resistance Measurement (DCRM) alongside timing, motion, and coil analysis makes it a preferred choice for professionals focused on breaker reliability and predictive maintenance.

Key Features:

• Integrated 3-in-1 system: timing and travel analysis, micro-ohm testing, and coil/motor power supply

• Dynamic Contact Resistance Measurement (DCRM) and static contact resistance testing

• Powerful 2.4 kW adjustable power supply for under-voltage and performance testing

• Single wiring setup for complete breaker testing

• Universal compatibility with a wide range of circuit breaker types

• Consolidated reporting with all test results in one combined report

• Lightweight and portable design suitable for field use

The OMICRON CIBANO 500 is an industry-leading circuit breaker test system designed to deliver comprehensive and highly efficient testing of medium- and high-voltage circuit breakers. Featuring advanced 3-in-1 functionality, the CIBANO 500 combines a multi-channel timing and travel analyser, a high-accuracy digital micro-ohm meter, and a powerful 2.4 kW adjustable coil and motor power supply into a single, integrated solution. With one unified wiring setup, the system enables complete circuit breaker diagnostics—including Dynamic Contact Resistance Measurement (DCRM)—making it an essential tool for commissioning, maintenance, and asset condition assessment in substations, power plants, and industrial facilities.
